Dinamic Oil is an Italian manufacturer of Hoisting Winches and Planetary Gearboxes which has been consolidated on the international market. Here are the products from Dynamic Oil that we provide.
Dinamic Oil is an Italian manufacturer of Hoisting Winches and Planetary Gearboxes which has been consolidated on the international market. Here are the products from Dynamic Oil that we provide.

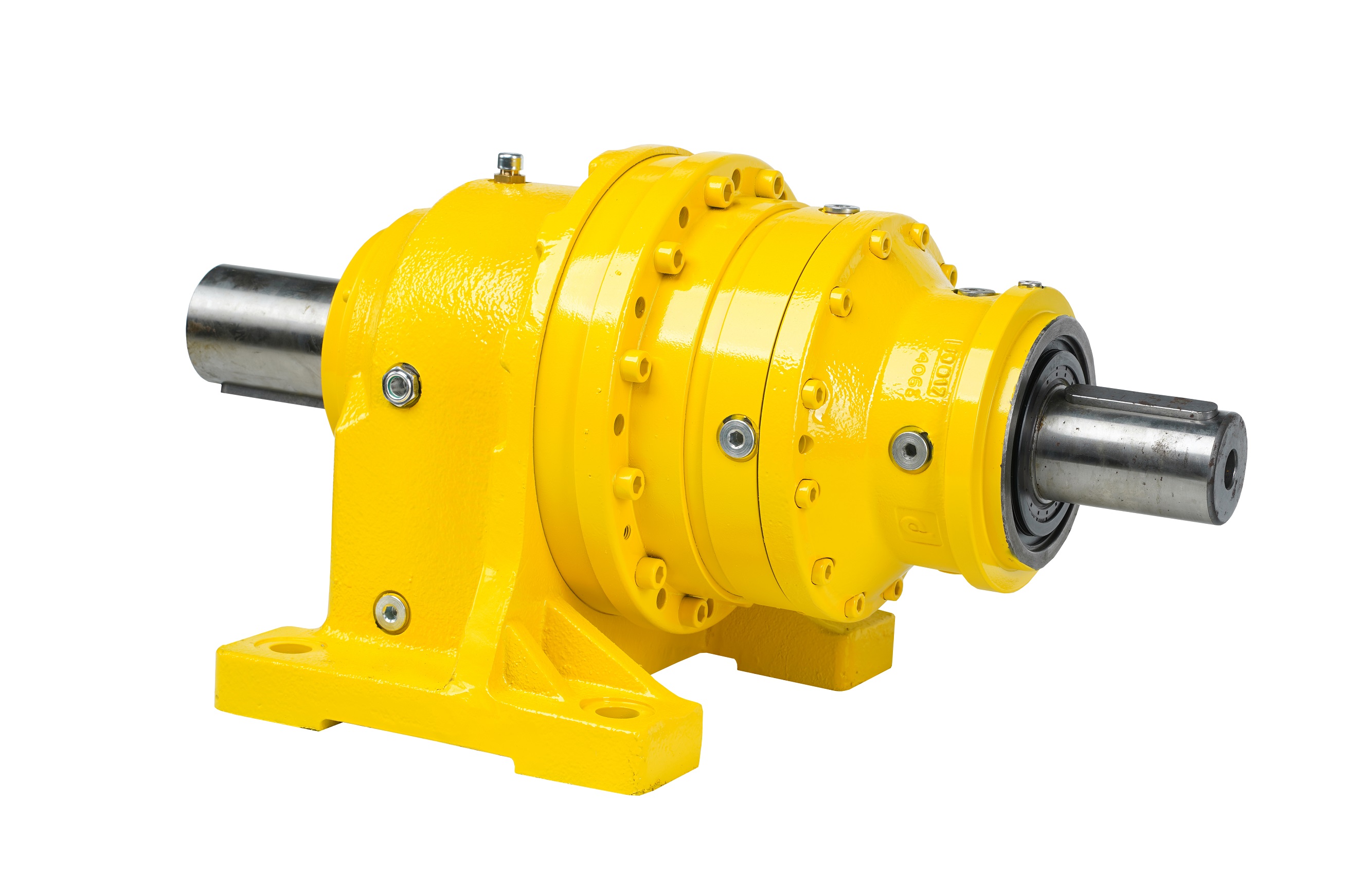

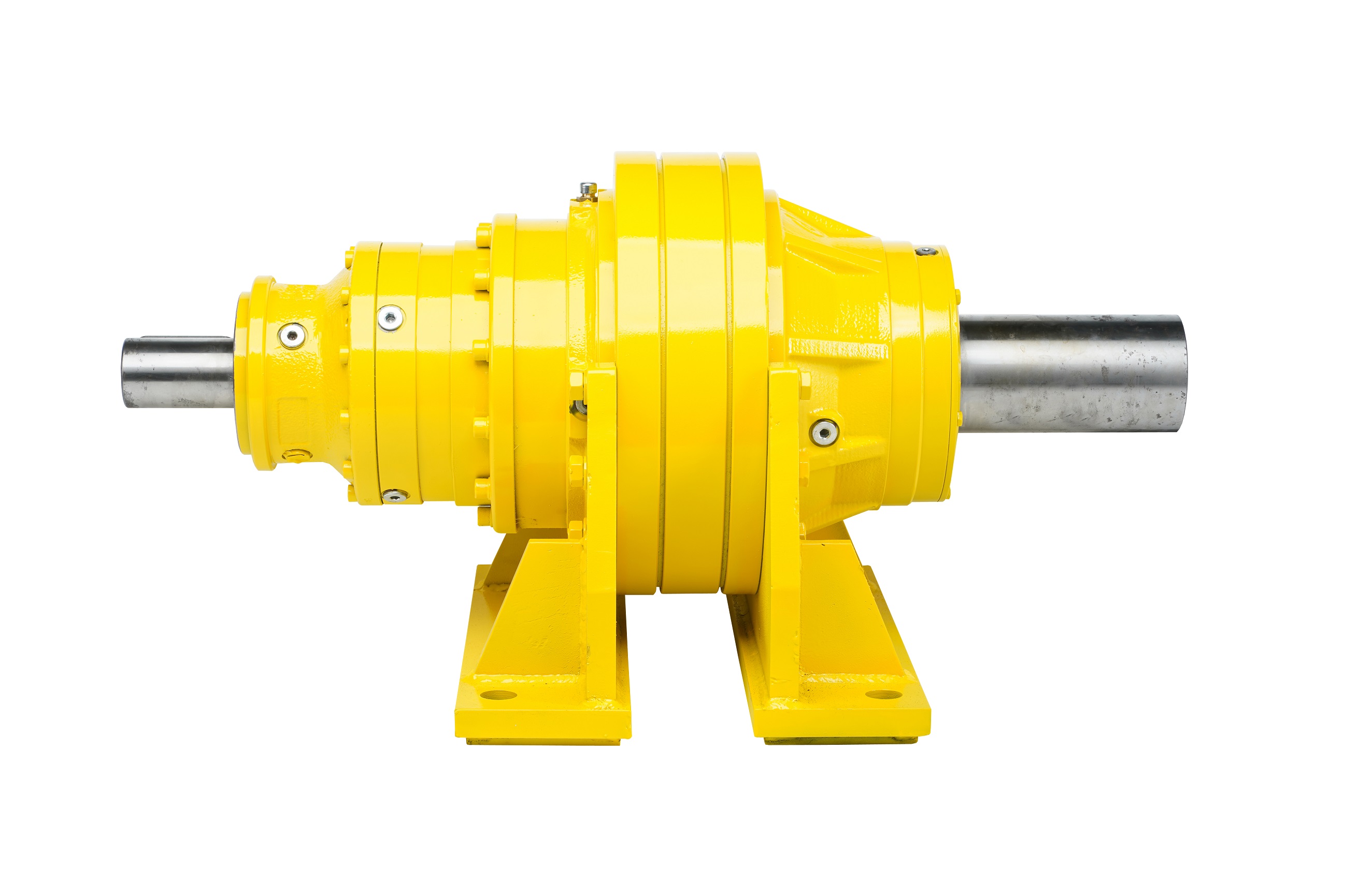

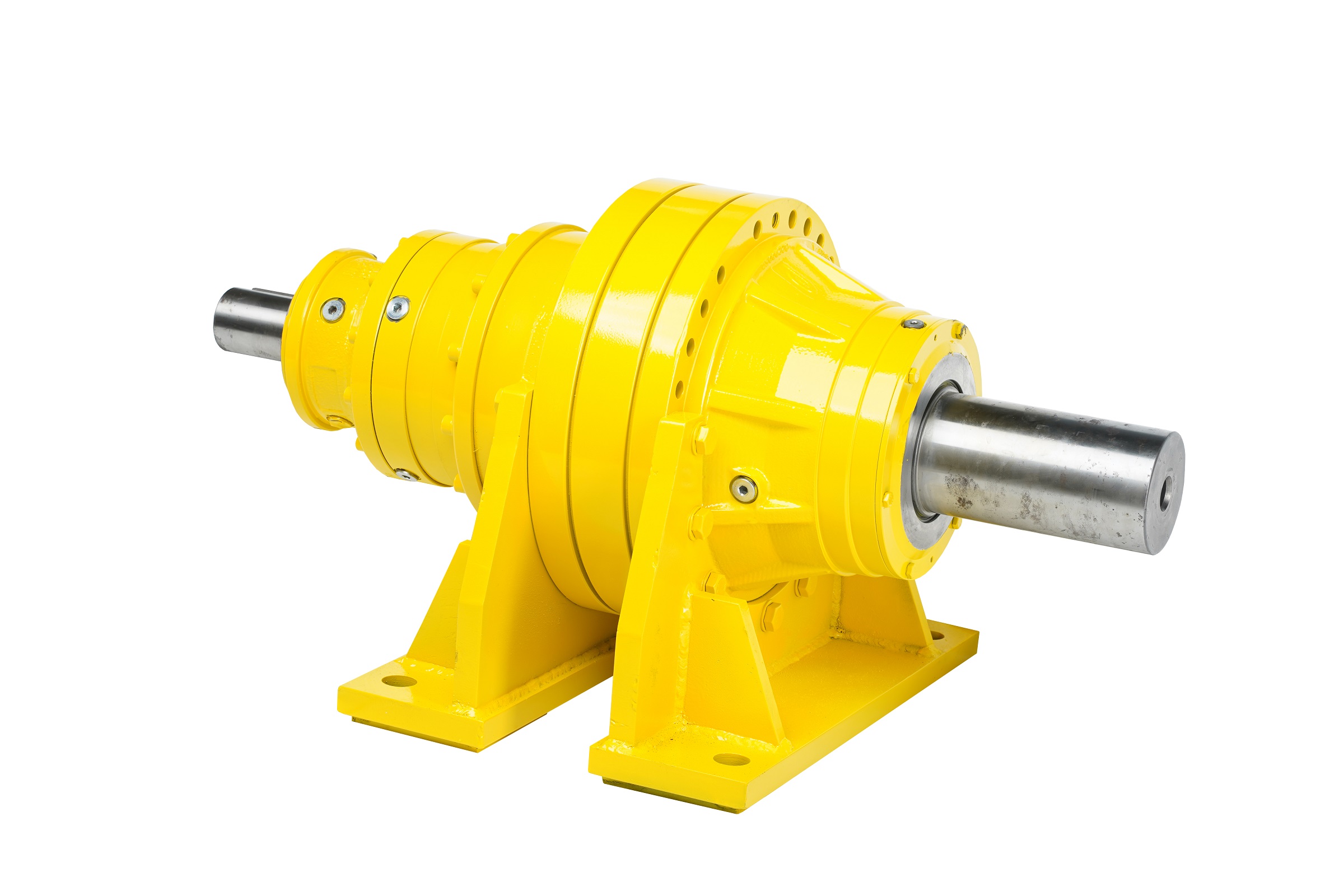

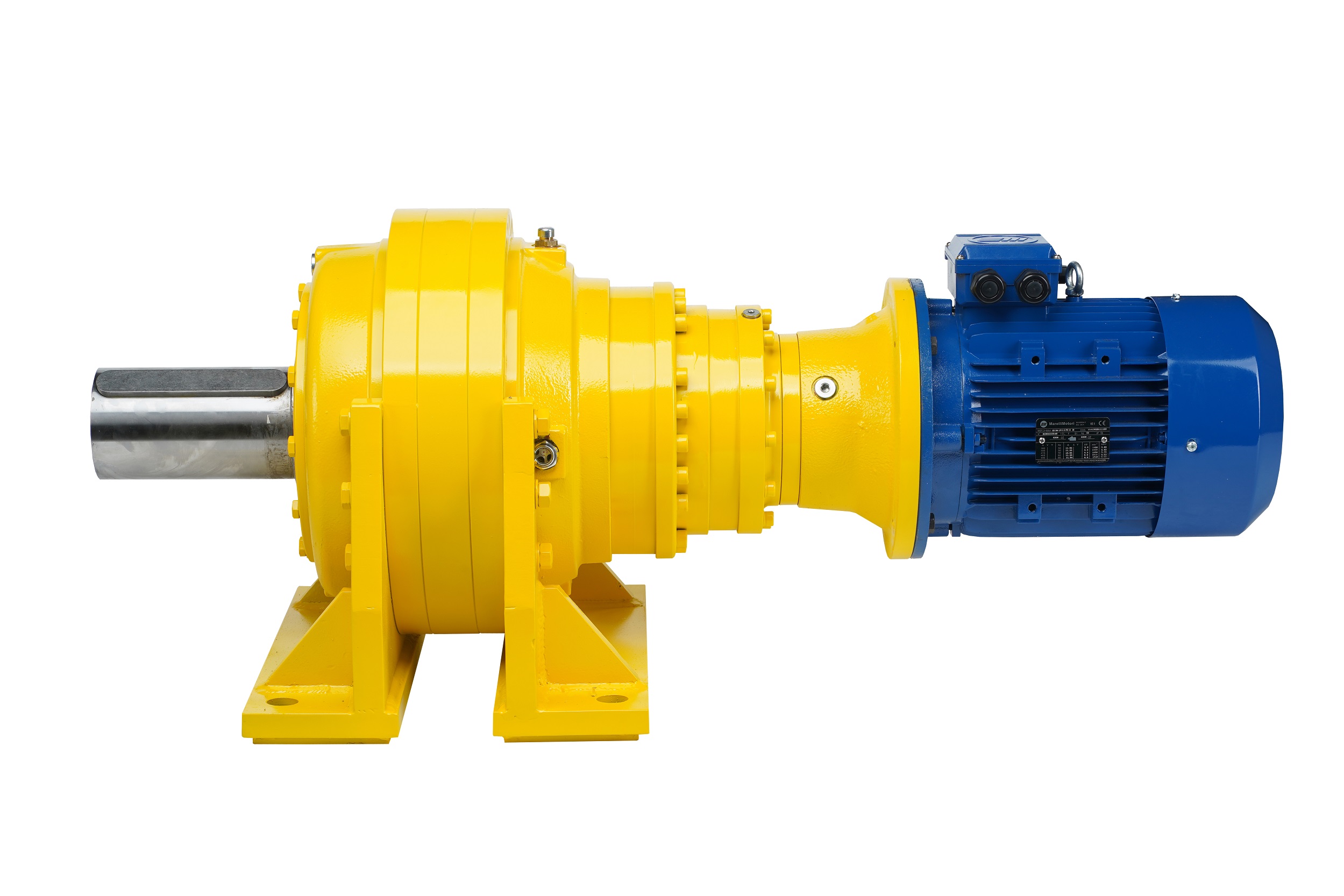

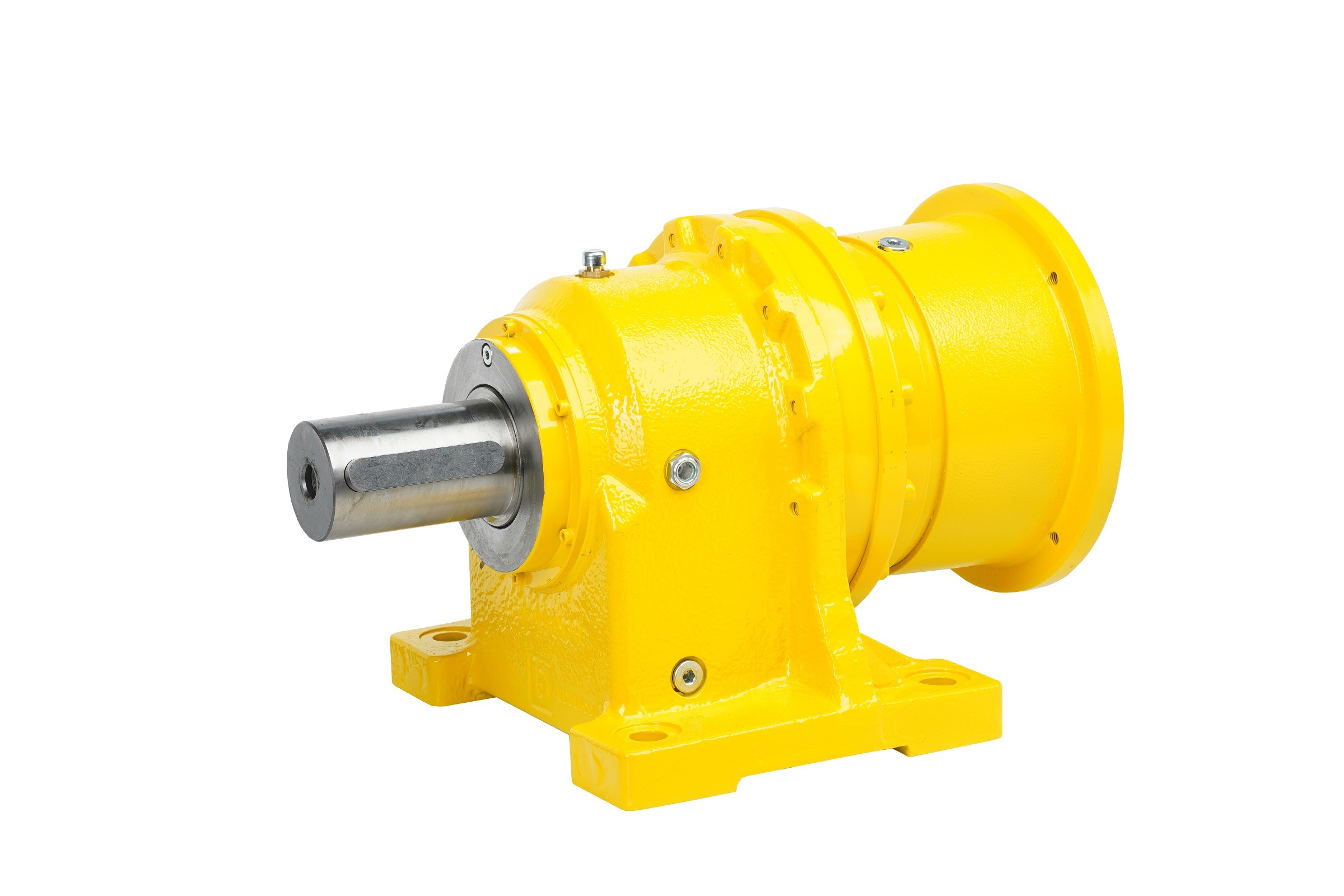

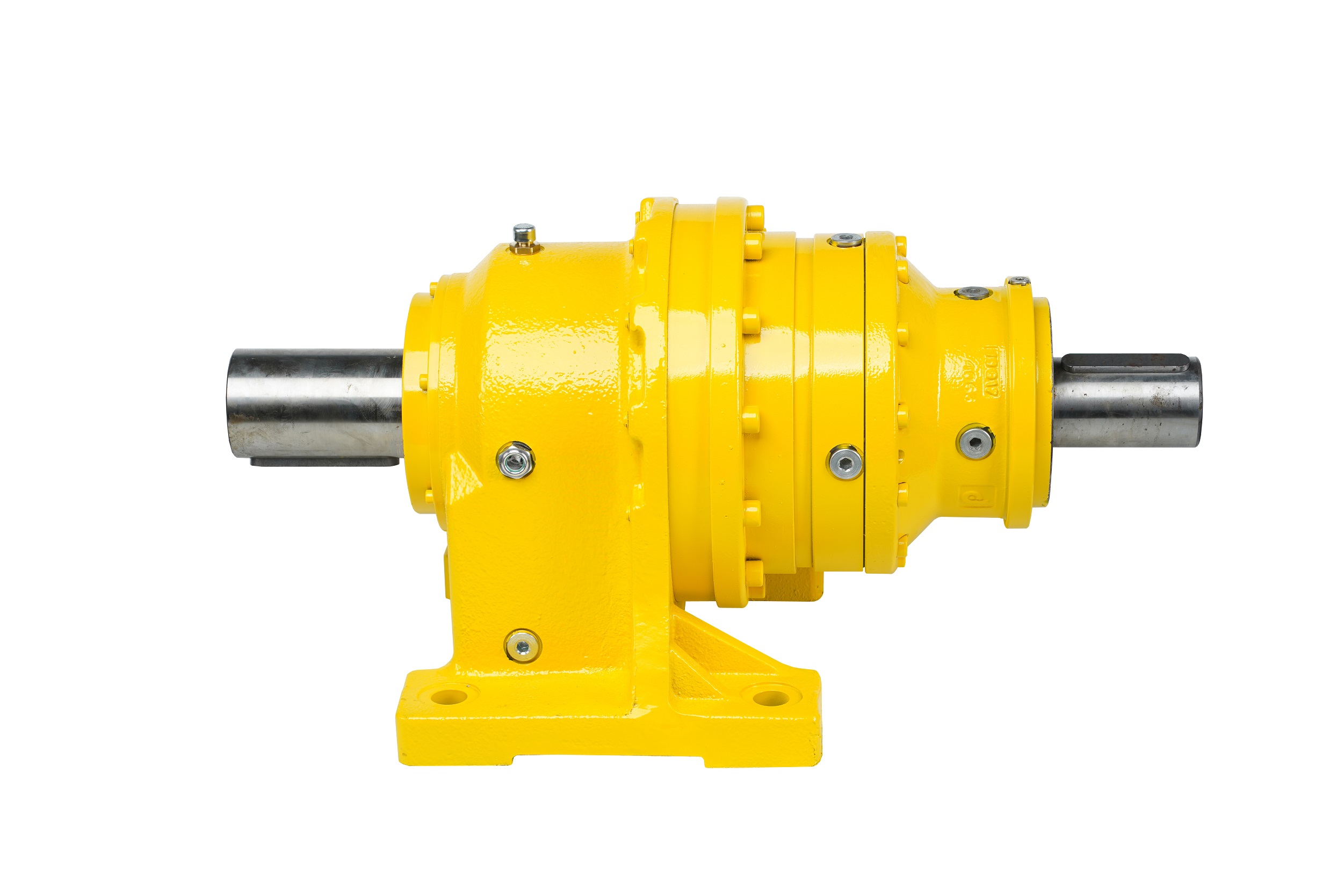

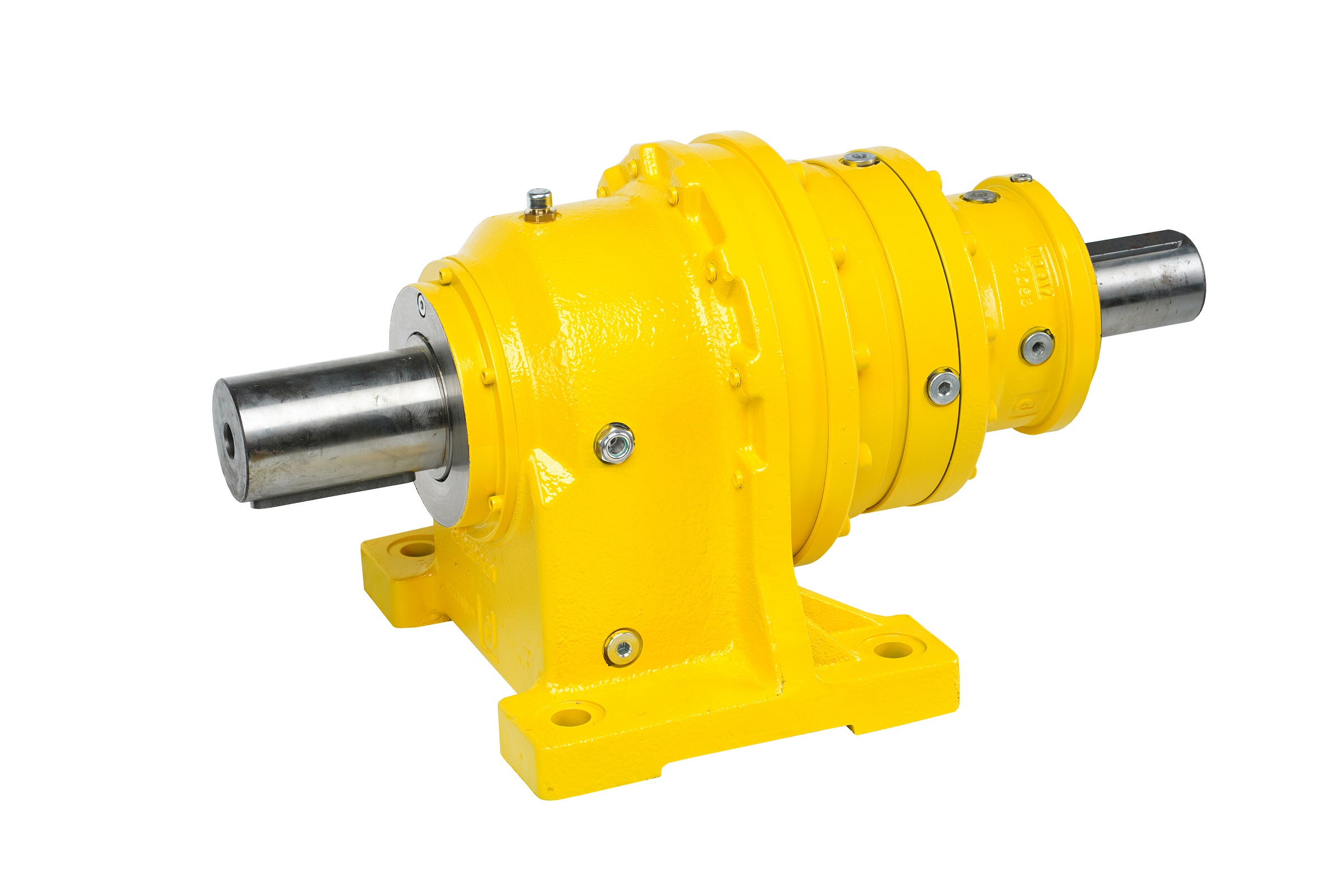

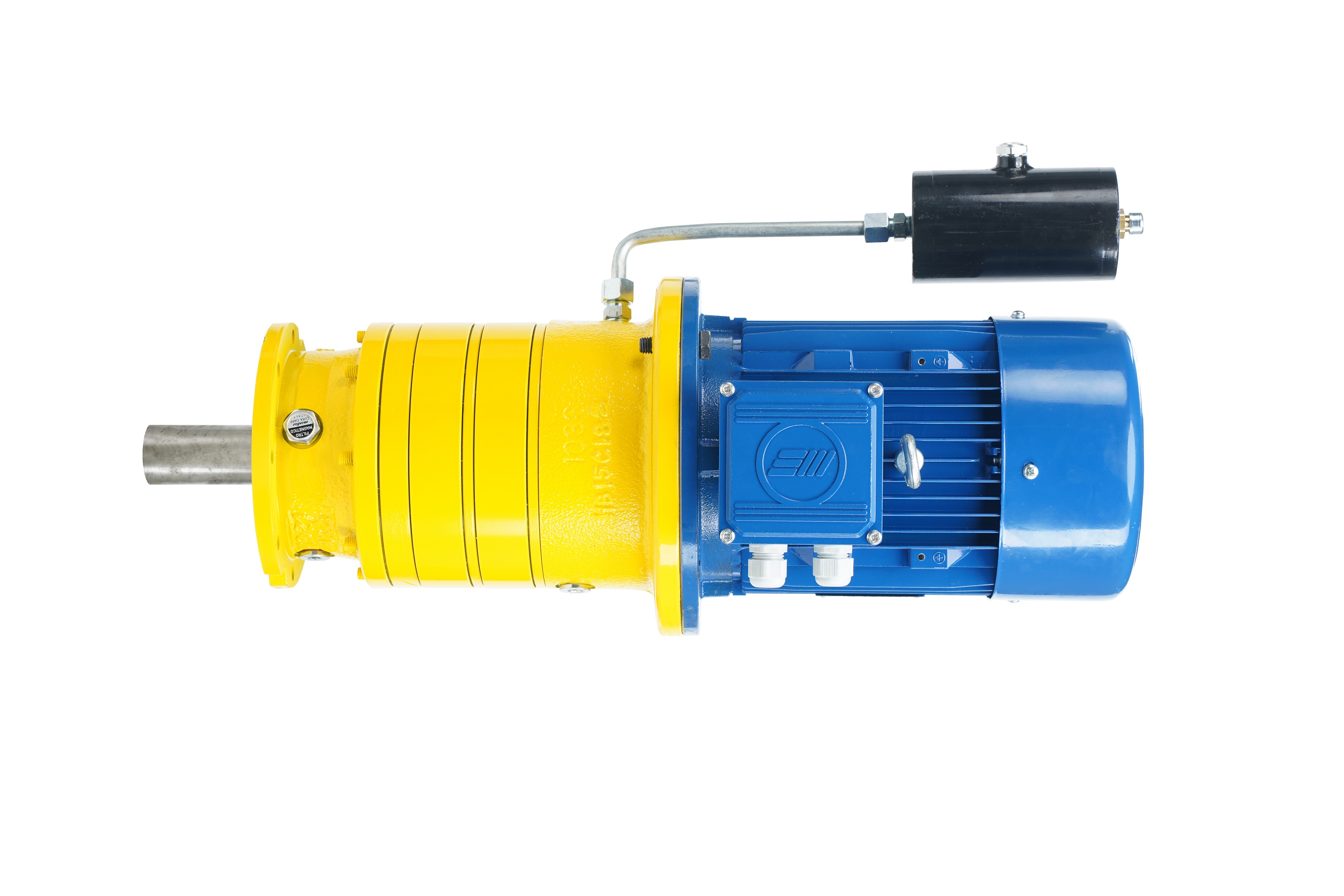

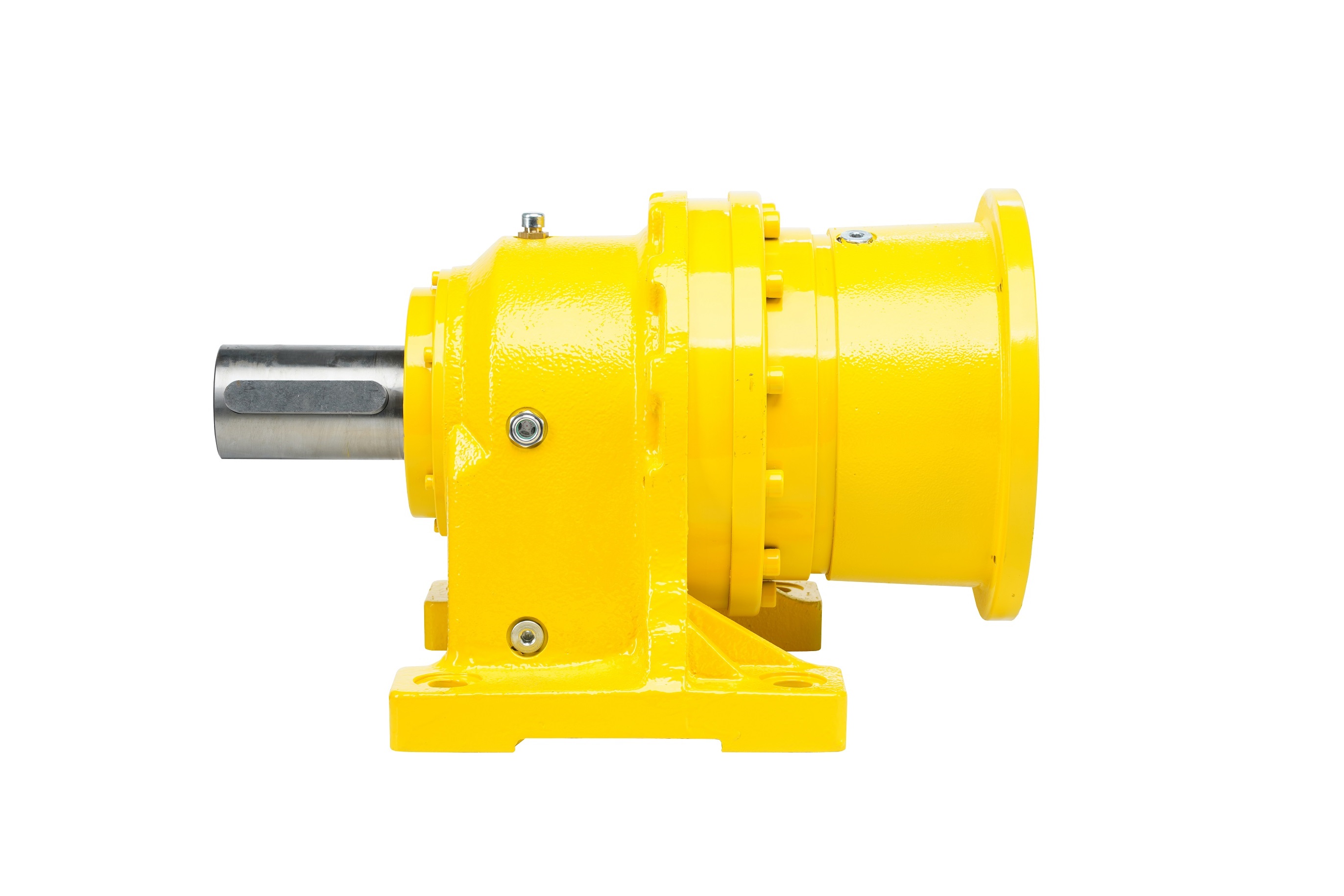

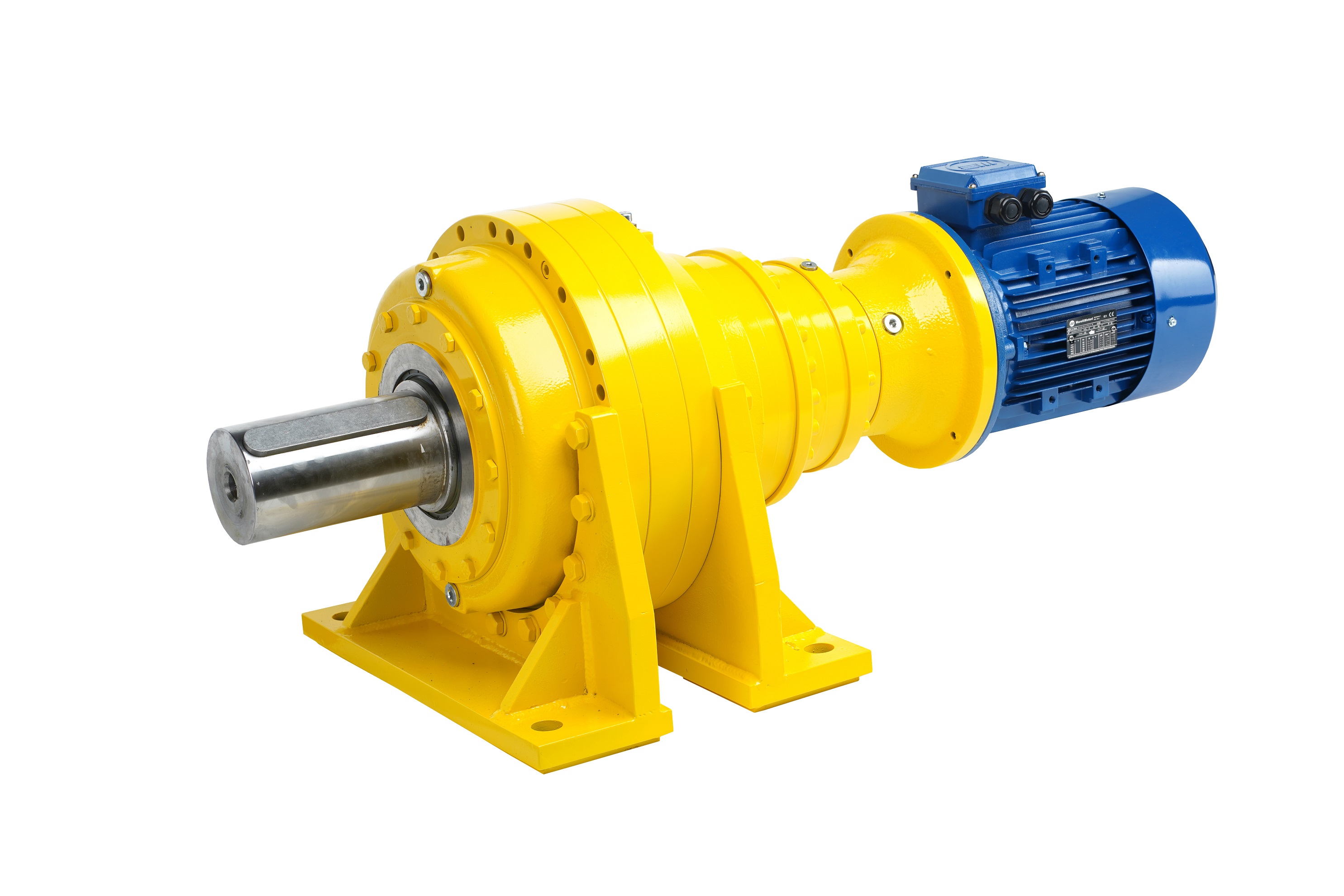

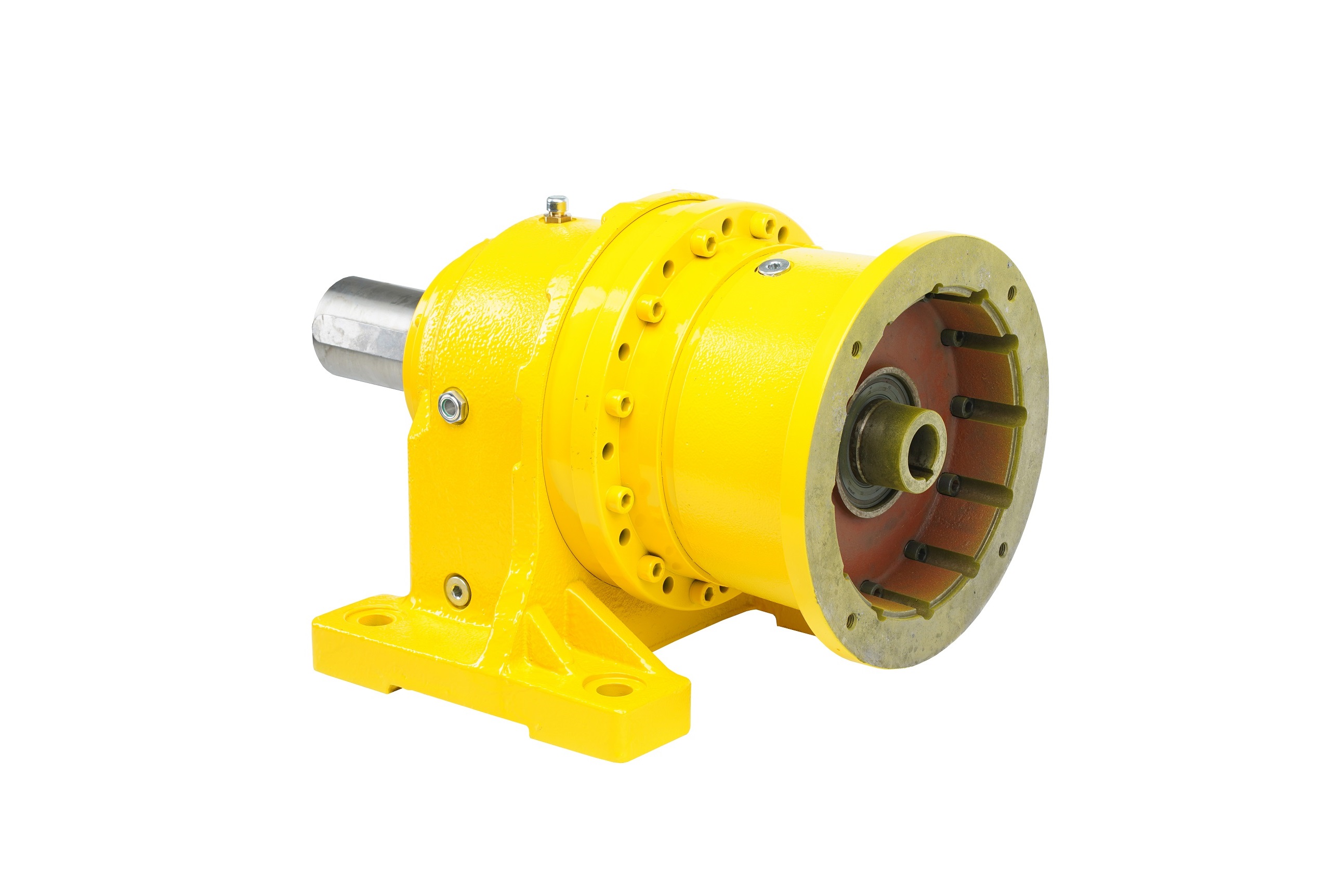

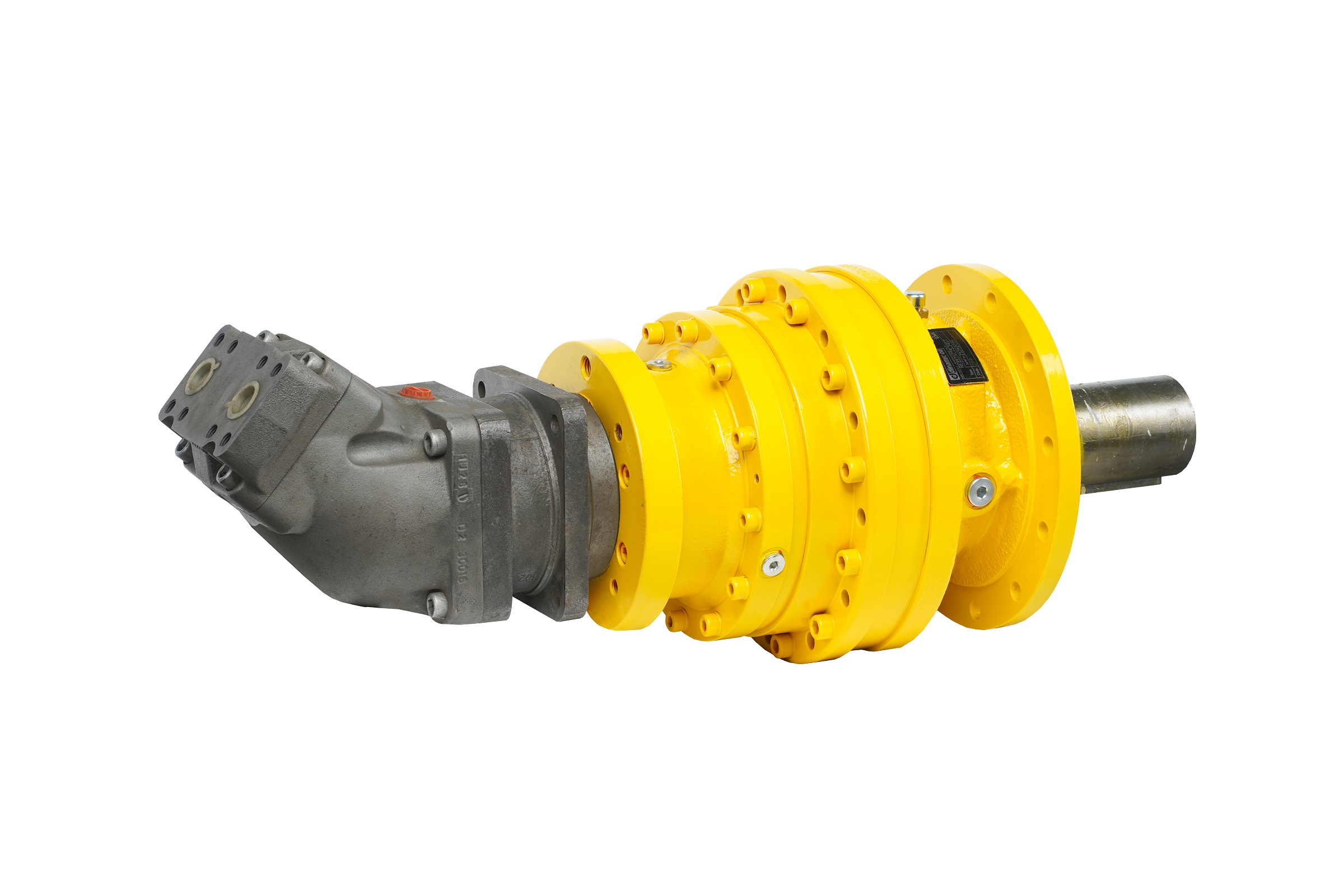

Planetary Gearboxes come in 33 sizes. This range covers from 1.000 Nm to 4.600.000 Nm of ISO Torque. The design provides high performance from compact dimensions and is suitable for a wide range of applications including: mobile, drilling, marine, mining and industrial. Wide availability of customized solutions makes this range of gearboxes adaptable to any kind of application where a compact and reliable mechanical transmission is needed.
Specification:

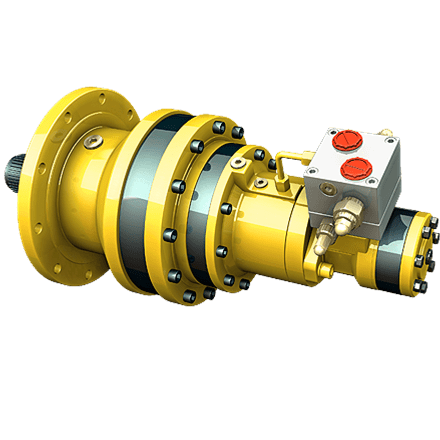

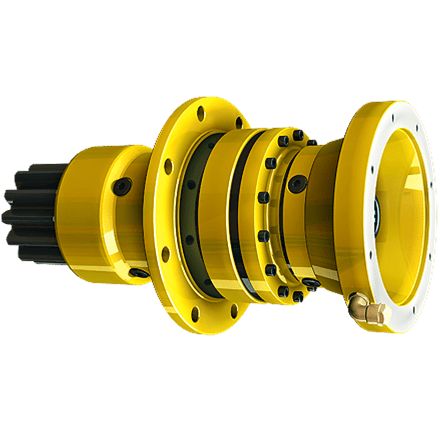

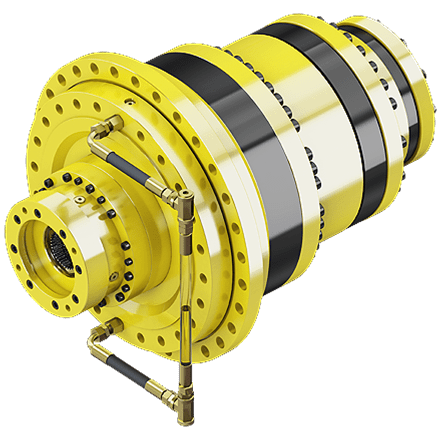

This standard range covers from 5.000 Nm to 118.000 Nm nominal torque, however special solutions are available for torque values up to 2.000.000 Nm. The gearboxes have a compact design and a strong output support suitable for applications with high radial loads. Each model can be supplied with pinion shaft or male shafts (splined or cylindrical). Amongst the many accessories available static brakes can be fitted in a low opening pressure version (suitable for closed loop circuit) or in a dry version (suitable for high speed motor). Some models have the ABS type approval for Azimuth Thruster applications however design approval is available on demand with all other major classification societies.
.png)
.png)
Specification:

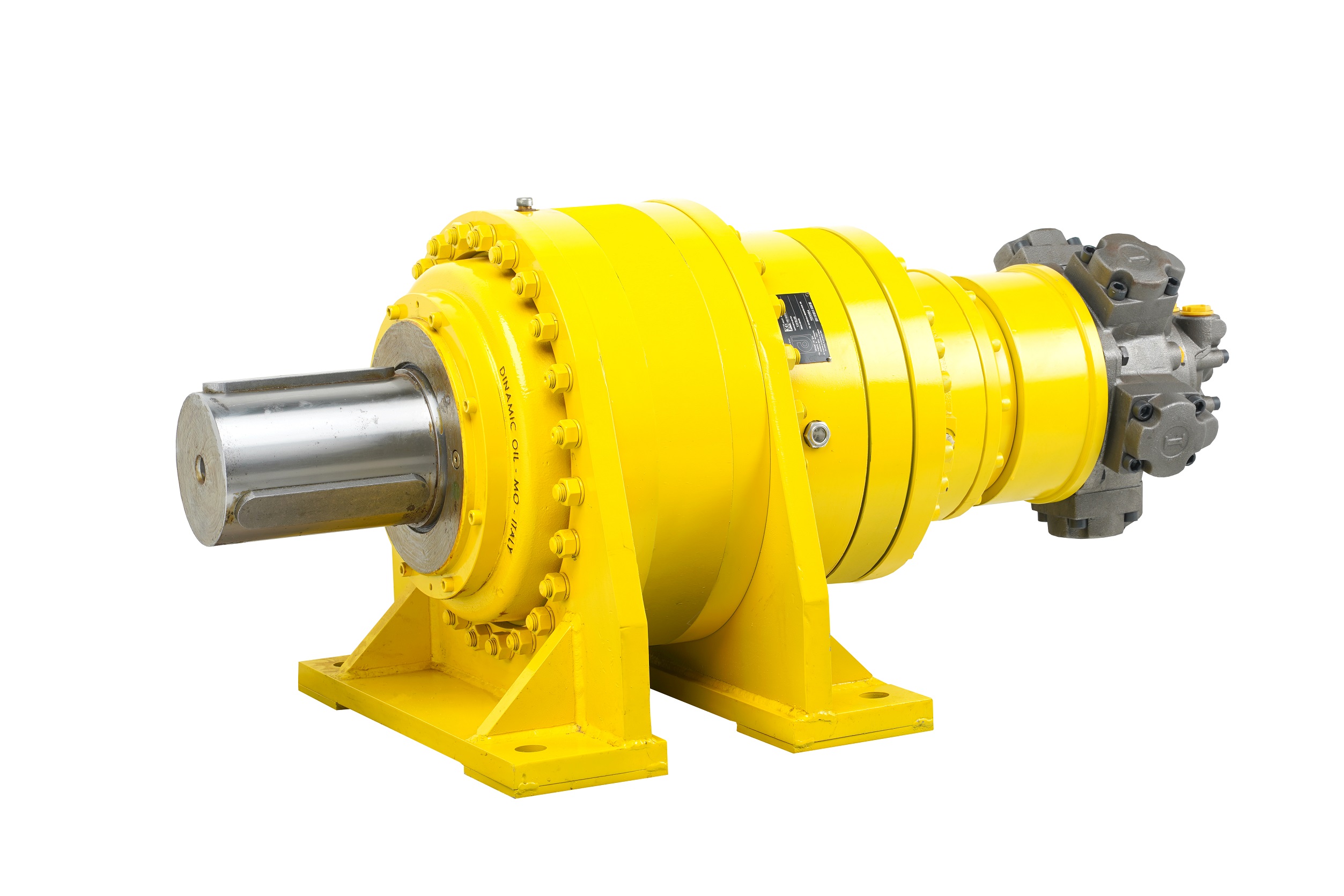

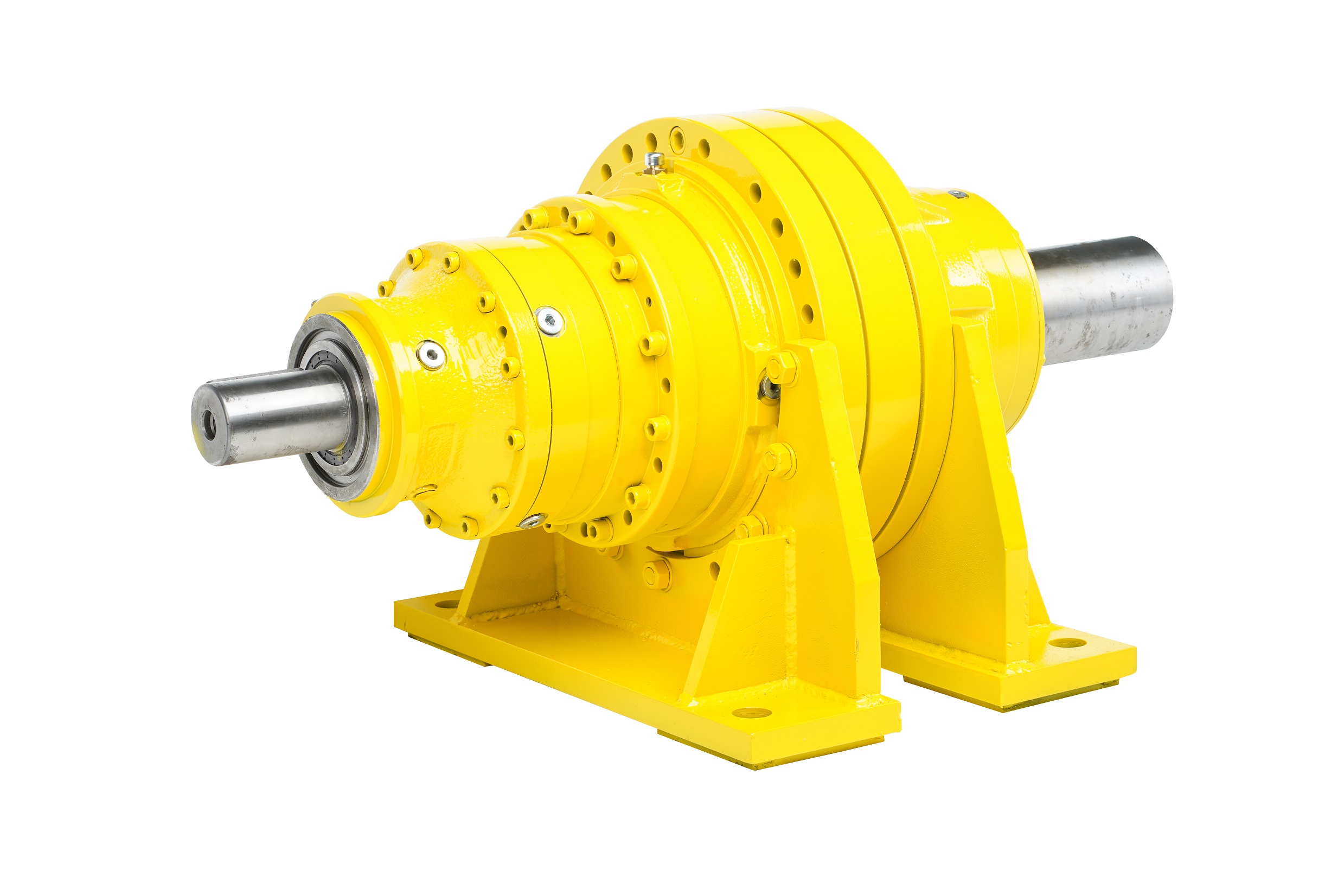

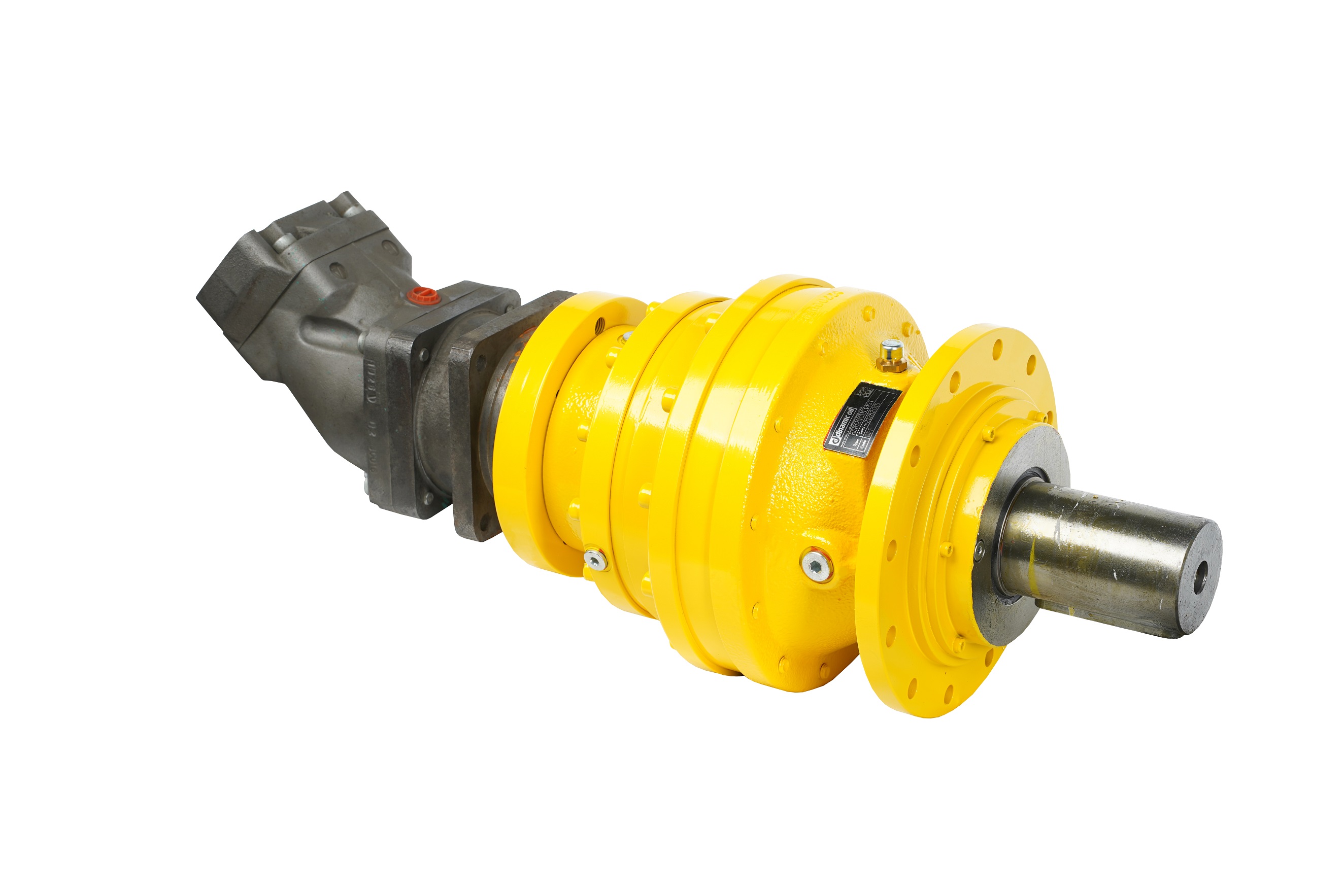

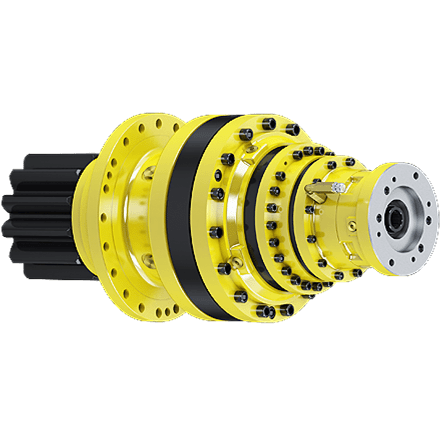

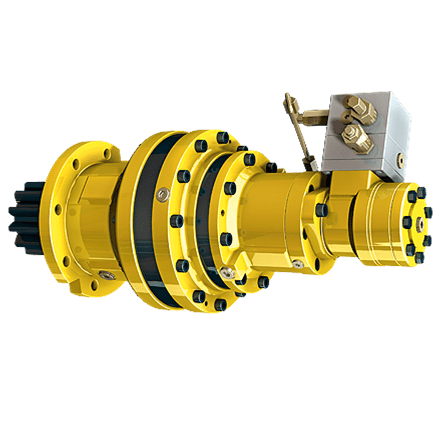

This standard range covers from 3.000 Nm to 160.000 Nm nominal torque, however special solutions are available for torque values up to 2.000.000 Nm. The gearboxes have a compact design and a strong output support suitable for applications with high radial loads. Each model can be supplied with pinion shaft or male shafts (splined or cylindrical). Amongst the many accessories available static brakes can be fitted in a low opening pressure version (suitable for closed loop circuit) or in a dry version (suitable for high speed motor). Some models have the ABS type approval for Azimuth Thruster applications however design approval is available on demand with all other major classification societies.
.png)
 (1).png)
.png)
.png)
Specification:

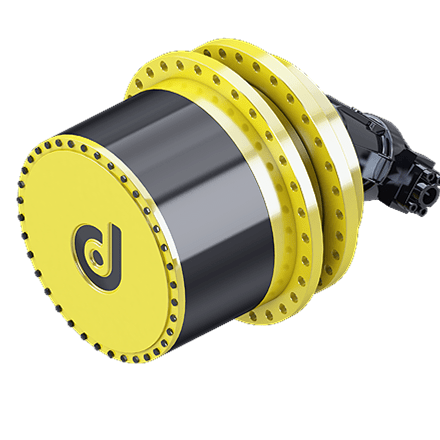

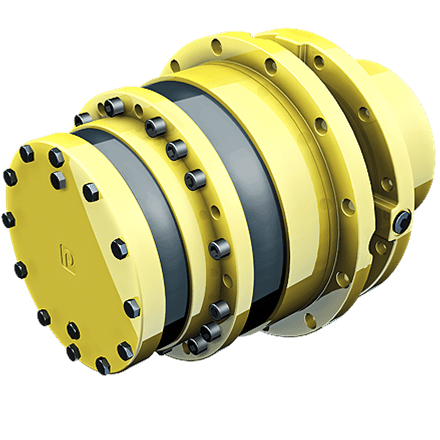

This range covers from 80.000 to 900.000 Nm of maximum torque, equivalent to machine weights of 30 - 300 Tons (excavator) or 100 - 450 Tons (crawler cranes). The models are designed with ground gears and steel case and carriers in order to be the best solution for the most demanding applications. The modularity of the stage composition allows an extended range of ratios. These features make the EH series particularly suitable for alternative applications such as wheels drives, winch drives and marine pipe layer drives.
.png)
Specification:

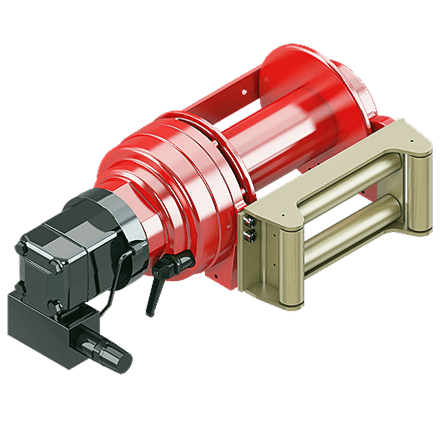

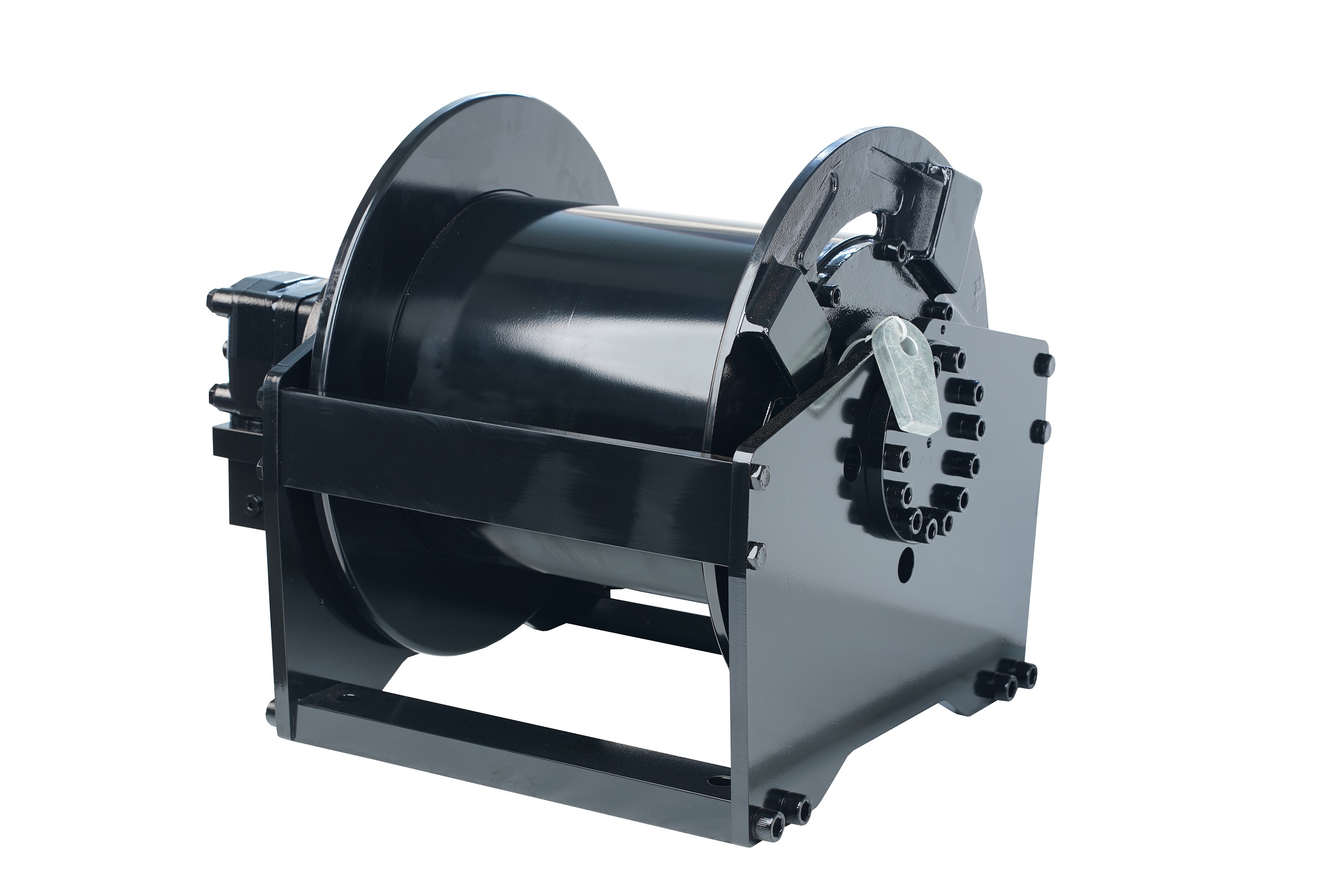

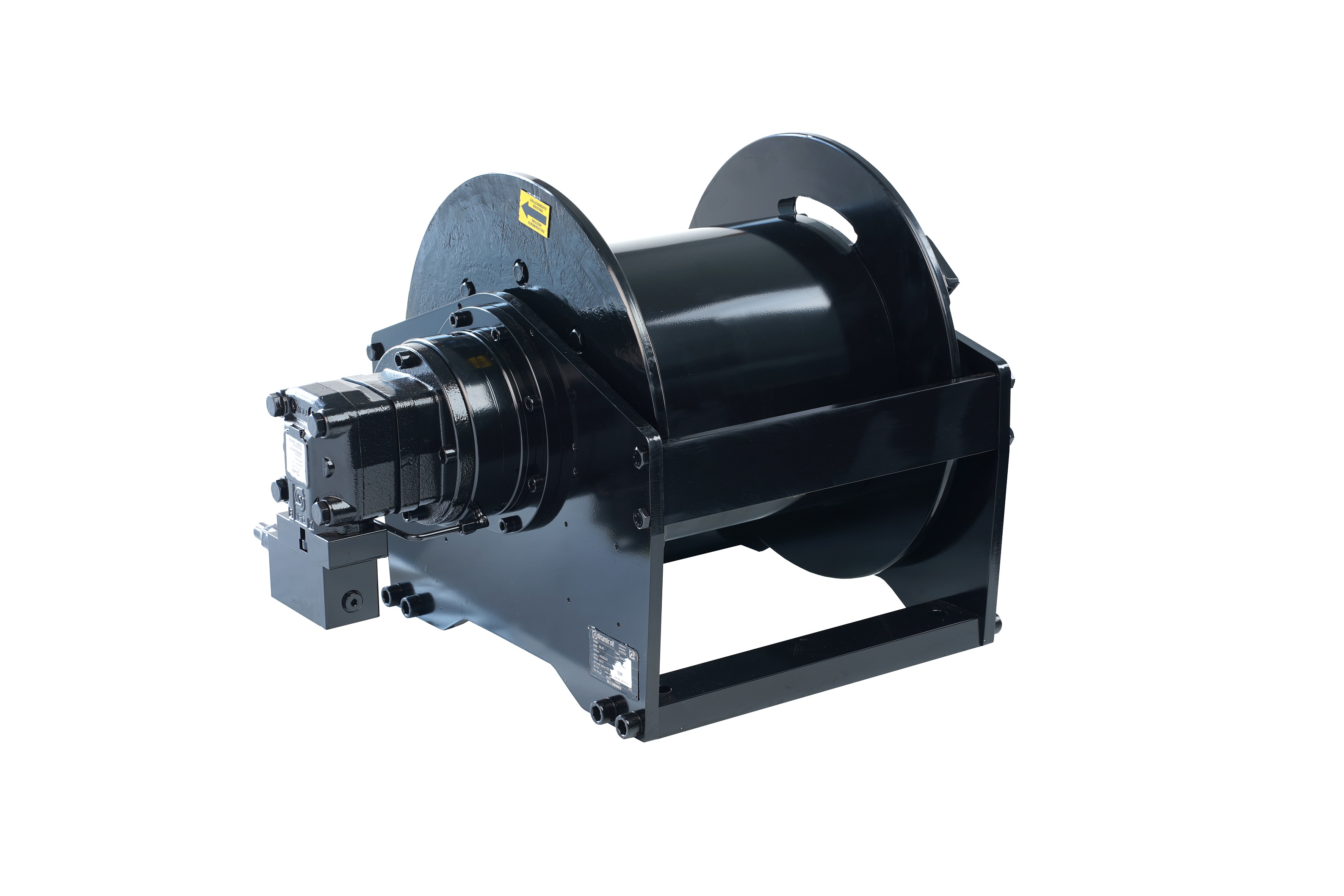

This standard range covers from 3.000 Nm to 160.000 Nm nominal The standard range covers from 500 kg to 30 Tons line pull. Winches are equipped with orbit motors or axial piston motors, negative multi disc brake and a variety of accessories are available e.g.: tension rollers, third wrap indicators, load sensing, grooved drums, level-winds, absolute encoders. Medium Marine Grade Painting is standard on all winches. Customized winches can be produced according to specific requirements e.g. (manriding, double cable drum, special grooved drum, customized dimensions).
Specification:

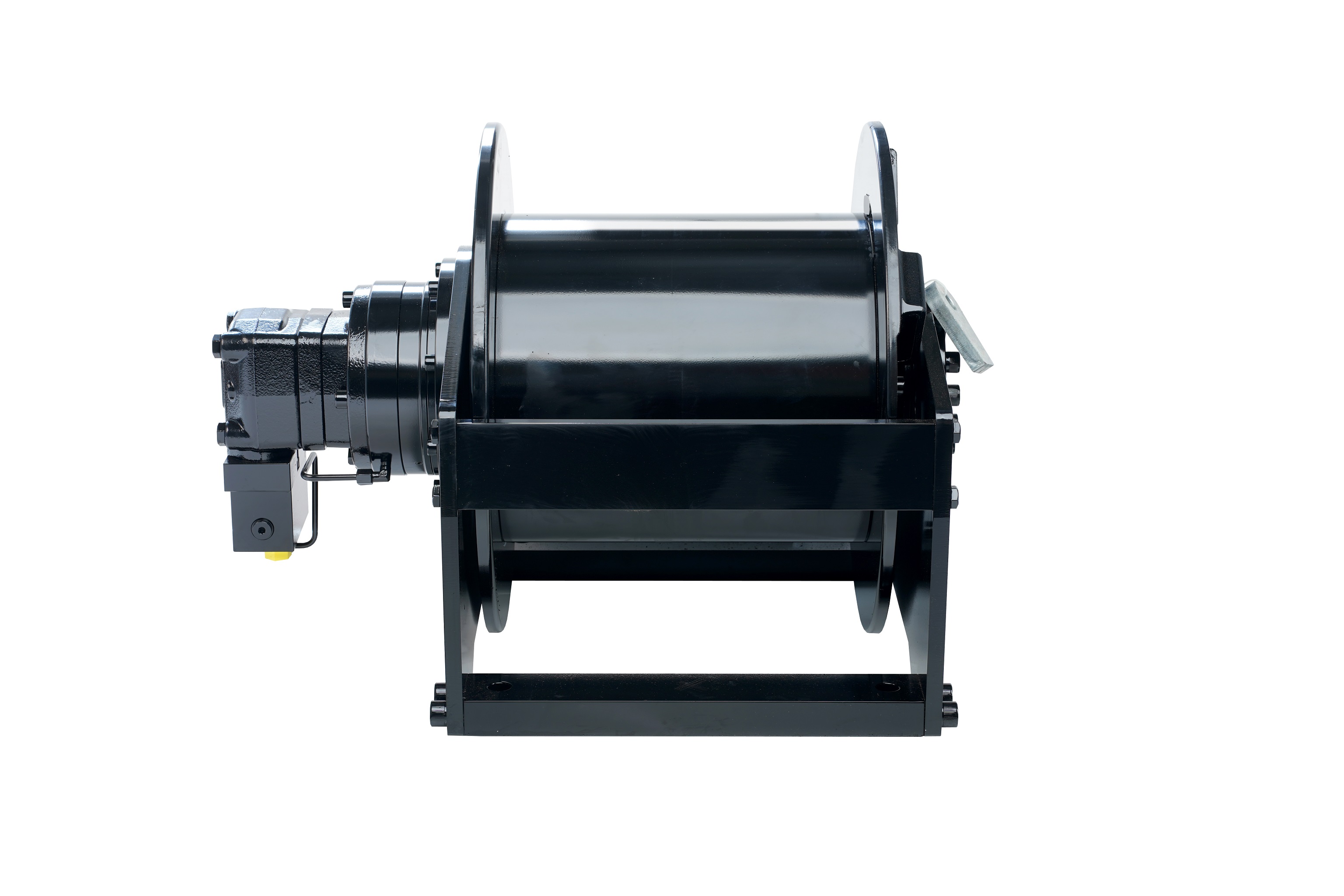

This range covers from 1000 kg to 30 tons of line pull. The design incorporates three independant elements (hydraulic motor, static brake and planetary gearbox), to provide maximum reliability and ease of maintenance.
.png)
This range covers from 1000 kg to 30 tons of line pull. The design incorporates three independant elements (hydraulic motor, static brake and planetary gearbox), to provide maximum reliability and ease of maintenance.
